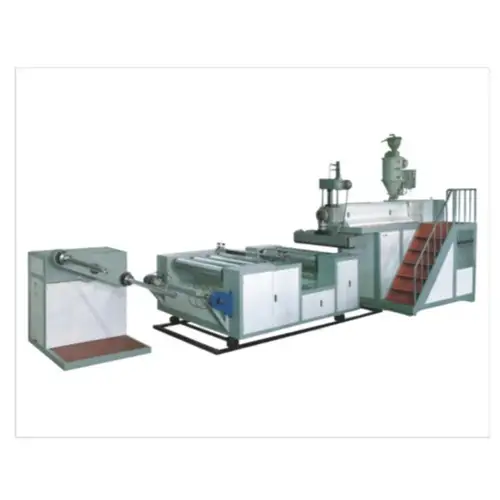

Double Layers Air Bubble Film Machine

Double Layer Air Bubble Film

The Air Bubble Film Machine features a straightforward design and is easy to operate, intended for continuous operation around the clock, seven days a week.

Also referred to as the air bubble film making device, the air bubble film extrusion setup is engineered for uninterrupted use, boasting a user-friendly design.

Constructed from Low-Density Polyethylene (LDPE) or recycled LDPE materials, this machine offers various widths, including 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm.

This machine produces two-layer bubble films in a range of colors such as red, blue, and yellow, and can operate on power supplies of 220V, 380V, 440V, or 480V.

The machine is essential for various packaging needs, providing efficient protection for products during shipping.

two layers air bubble film machines

two layers air bubble film machine



Main Technical Variables:

Model	KDPE-1000	KDPE-1200	KDPE-1500
Raw Material	LDPE	LDPE	LDPE
Screw Diameter	φ65mm	φ75mm	φ90mm
Film Width	1000mm	1200mm	1500mm
Film Layer	Two Layers	Two Layers	Two Layers
Bubble Hole Diameter(mm)	6,8,10,12,14,16,18,20mm
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output	50kg/h	60kg/h	70kg/h
Total Power	48kw	58kw	68kw
L/D Ratio Of Screw	28:1	28:1	28:1
Water Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Machine Weight	3	4	5
Power Voltage	220V,380V,440V
Air Shaft Diamater	without paper core ,58mm,76mm
Machine Working Time	24 hours*7	24 hours*7	24 hours*7
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

two layers air bubble film machines

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Bubble Film Machine Working in Customer Factory

two layers air bubble film machines

Install Strech Film Machine in Customer Factory

Our equipment has been a reliable choice for many businesses looking to enhance their packaging solutions.

install machines in customers factory

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
