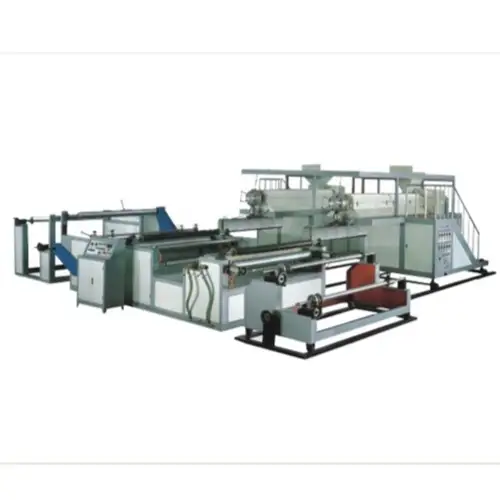

Three Layers Air Bubble Film Machine

Three Layers Air Bubble Film Machine

The Air Bubble Film Machine features a straightforward design that allows for easy operation, specifically engineered for continuous use, operating 24 hours a day, seven days a week.

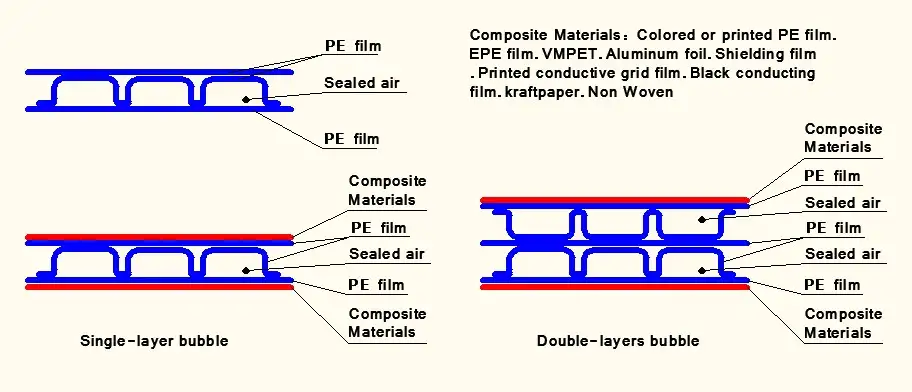

This air bubble film making machine is capable of producing three-layer air bubble film, with additional equipment available to create four-layer and five-layer air bubble films.

Constructed from Low-Density Polyethylene (LDPE) or recycled LDPE materials, this machine comes in various widths, including 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm.

The machine generates bubble films with two layers in a range of colors such as red, blue, and yellow, and can be powered by options including 220V, 380V, 440V, or 480V.

Technical Variables:

Model	KDPEG-1000	KDFPG-1200	KDPEG-1500
Raw Material	LDPE,recycle material,masterbatch and additives material
Screw Diameter	φ65mm+φ50mm	φ75mm+φ60mm	φ90mm+φ70mm
Bubble film Max. width	600mm	1200mm	1500mm
Bubble Film Layer	3 layers,4 layers,5 layers
Bubble Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output	55kg/h	70kg/h	90kg/h
Total power	75kw	82kw	98kw
L/D Ratio Of Screw	28：1	28：1	28：1
Water Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Machine Weight	3.5	4.5	5
Power Voltage	220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Air Shaft Diameter	without paper core ,58mm,76mm
Machine Working Time	24 hours*7
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

two layers air bubble film machines

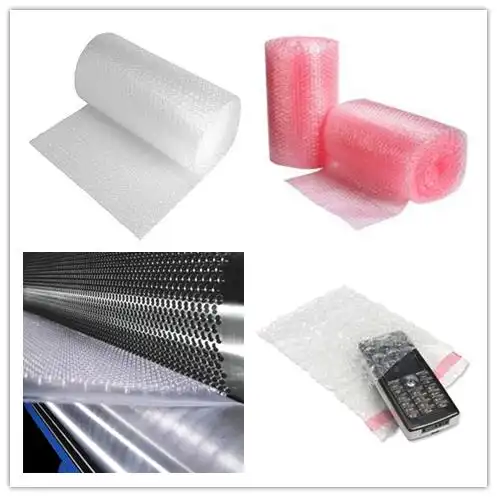

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

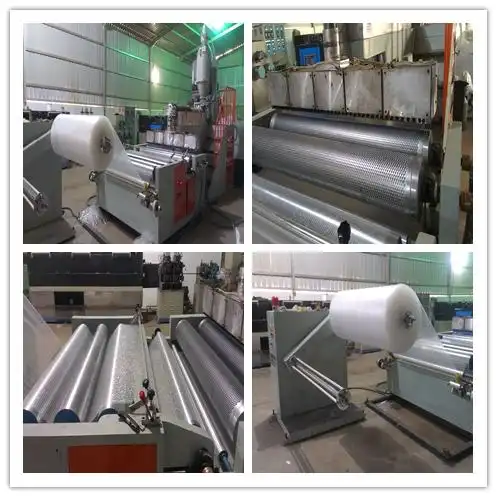

Bubble Film Machine Working in Customer Factory

two layers air bubble film machines

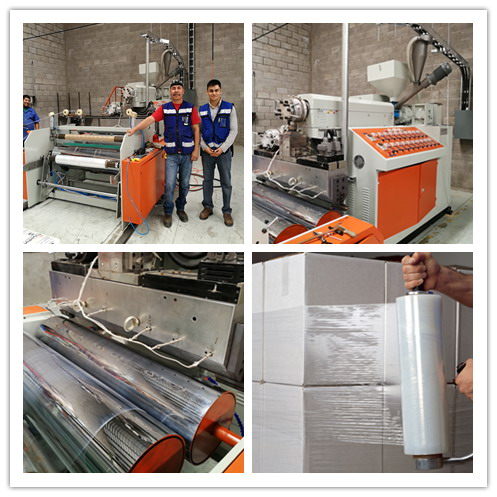

Install Strech Film Machine in Customer Factory

install machines in customers factory
