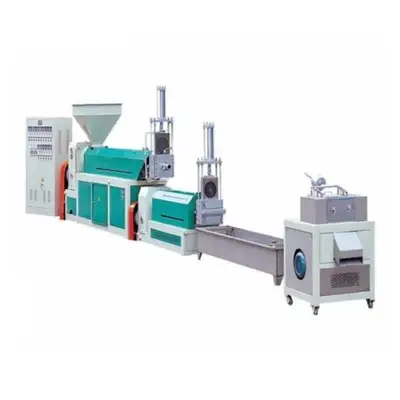

Two Stage Plastic Pelletizing Recycling Machine

Two Stage Plastic Pelletizing Recycling Machine

This Two Stage Plastic Pelletizing Recycling Machine features two extruders and dual filtration systems, making it ideal for the recycling of plastic products such as HDPE and LDPE. The machine incorporates an inverter for speed control, which enhances energy efficiency. The granulating crusher is equipped with an adjustable speed motor, ensuring ease of operation and high production capacity.

Features of the Two Stage Plastic Pelletizing Recycling Machine:

– Compatible with LDPE, HDPE, LLDPE, and PP materials.
– Accepts various material forms including plastic film, plastic bags, plastic bottles, and flakes.
– Equipped with inverter-controlled extruder speed for energy efficiency, eco-friendliness, and cost reduction.
– Comprises two extruders, dual filtration devices, a pelletizing unit, and a wind cooling unit.
– Comes with a one-year warranty; capable of continuous operation, functioning 24 hours a day, seven days a week.
– Designed for simplicity and ease of operation.
– Economically designed, making it suitable for beginners or startups.
– Operates on power options of 220V, 380V, 440V, and 480V, customizable per request (e.g., USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz).
– Offers after-sales service, including the option to send an engineer to the buyer’s facility for installation and training.
– Customized machines or OEM designs are welcomed from customers.

waste film for plastic recycling machine

waste film for plastic recycling machine

Main Technical Variables:

model	SJ-C90	SJ-C100	SJ-C110	SJ-C120
Diameter of ScrewStem	85mm	95mm	105mm	110mm
Major Diameter Ratio of Screw Stem	20:1-22:1(L/D)	20:1-22:1(L/D)	20:1-22:1(L/D)	20:1-22:1(L/D)
Rationl Speed of Screw	10-110rpm	10-110rpm	10-110rpm	10-110rpm
Main Motor Power	22kw	30kw	30kw	37kw
Output	60kg/h	90kg/h	110kg/h	130kg/h
Machine Weight	2t	2.1t	2.2t	2.5t
Overail Dimensions(LxWxH)	5800 x 1500 x 1100	5900 x 1300 x 1200	6000 x 1350 x 1300	6200 x 1400 x 1350
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

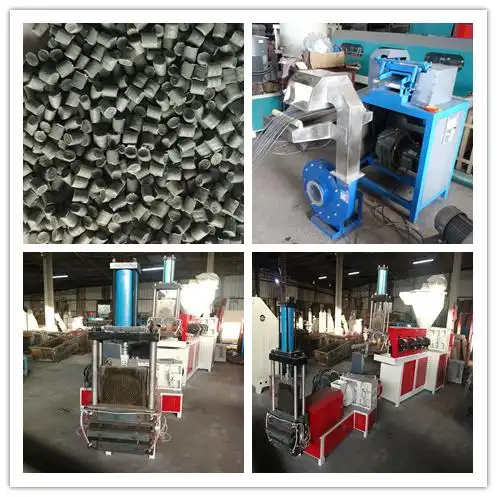

Plastic Pelletizing Recycling Machine

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

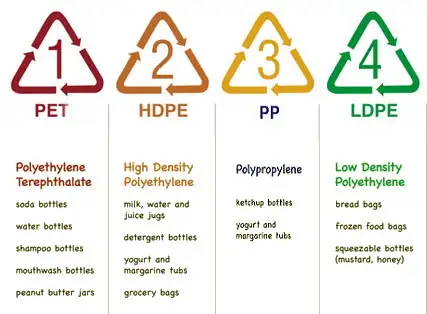

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
