Garbage Bag Machine

Garbage Bag Machine

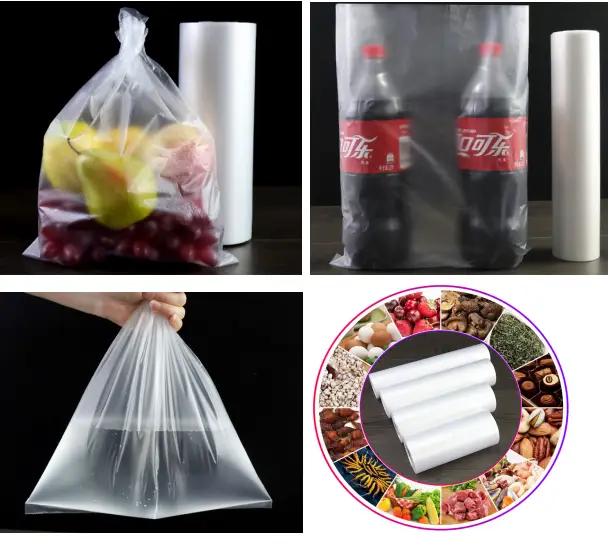

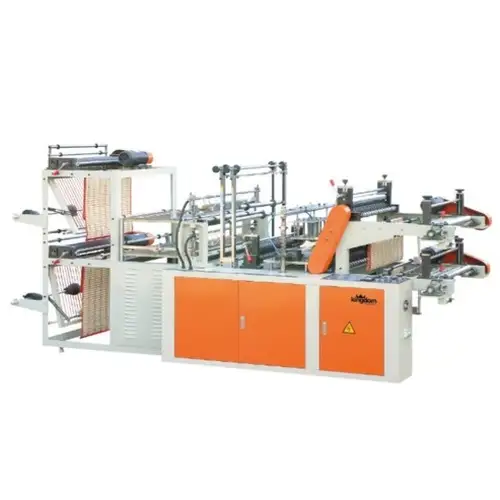

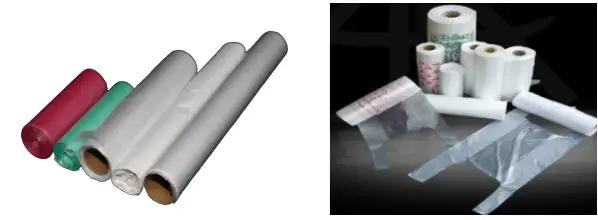

The Garbage Bag Machine operates with either a step motor or a servo motor for the feeding process, with speed regulation managed by a computer system. It offers convenient adjustments for bag sizes via computer settings. This plastic bag making machine specializes in manufacturing perforated core-less bags on rolls as well as rolling bags with cores. It is adept at producing double line star-sealing T-shirt bags, vegetable bags, table sheet cloths, and various garbage bags. Furthermore, the machine incorporates a printing photocell, enabling the production of printed bags on rolls. This model can concurrently create two lines of bags on a roll, and its straightforward design ensures ease of operation.

Garbage Bag Manufacturing Machine

Model	KDB-500	KDB-600	KDB-800
Max Bag Width(mm)	400	500	700
Max Bag Length (mm)	1000	1000	1000
Bag Thickness	0.008-0.15	0.008-0.15	0.008-0.10
Bag Material	LDPE,HDPE,LLDPE,recycle film
Bag	Garbage bag,vegetable bag,star seal bag,table sheet cloth
Bag Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Core for bag	25mm or without core
Machine Speed(pc/min)	140-200	40-120	40-120
Motor Power(kw)	1.1	1.1	1.5
Heating Power	1.2	1.6	2.2
Machine Dimensions	3.6X1.2X1.7 m	3.4X1.3X1.7 m	3.6X1.5X1.7 m
Machine weight (kg)	800	900	100
Power Voltage	220V 1PHASE
Machine Working Time	24 hours * 7 days
Warranty	1 year

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
